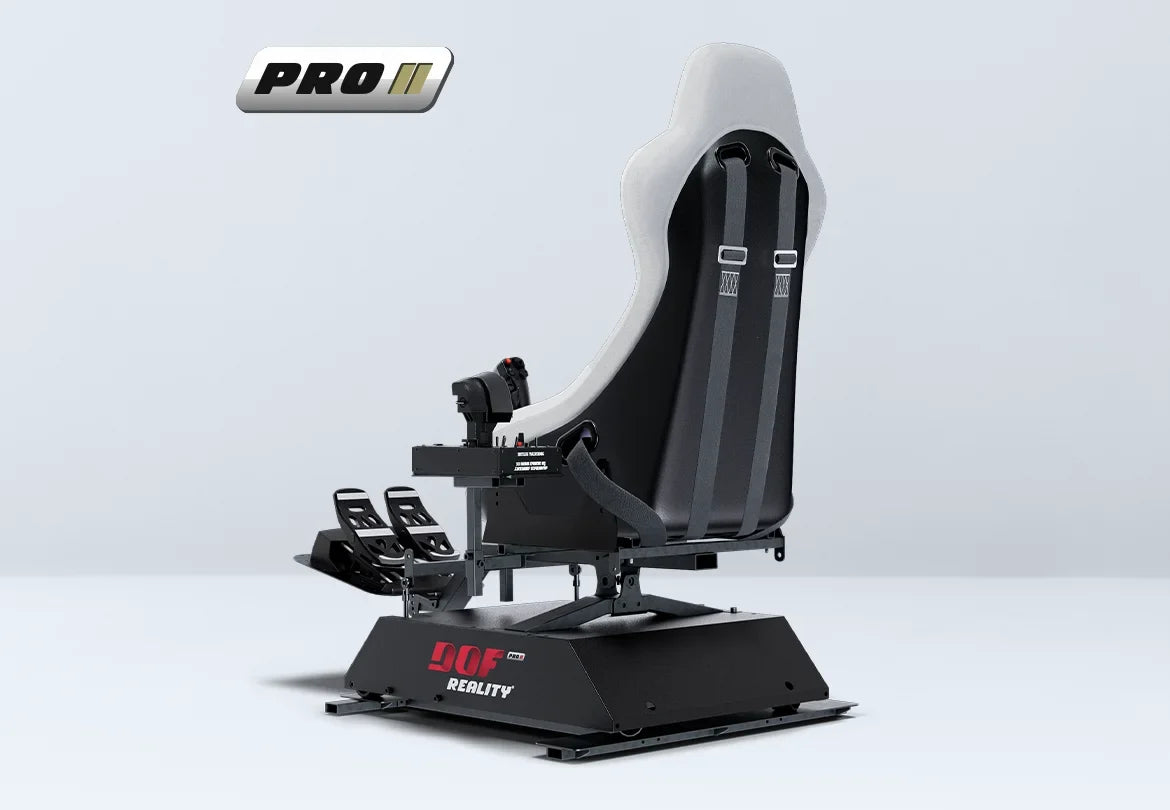

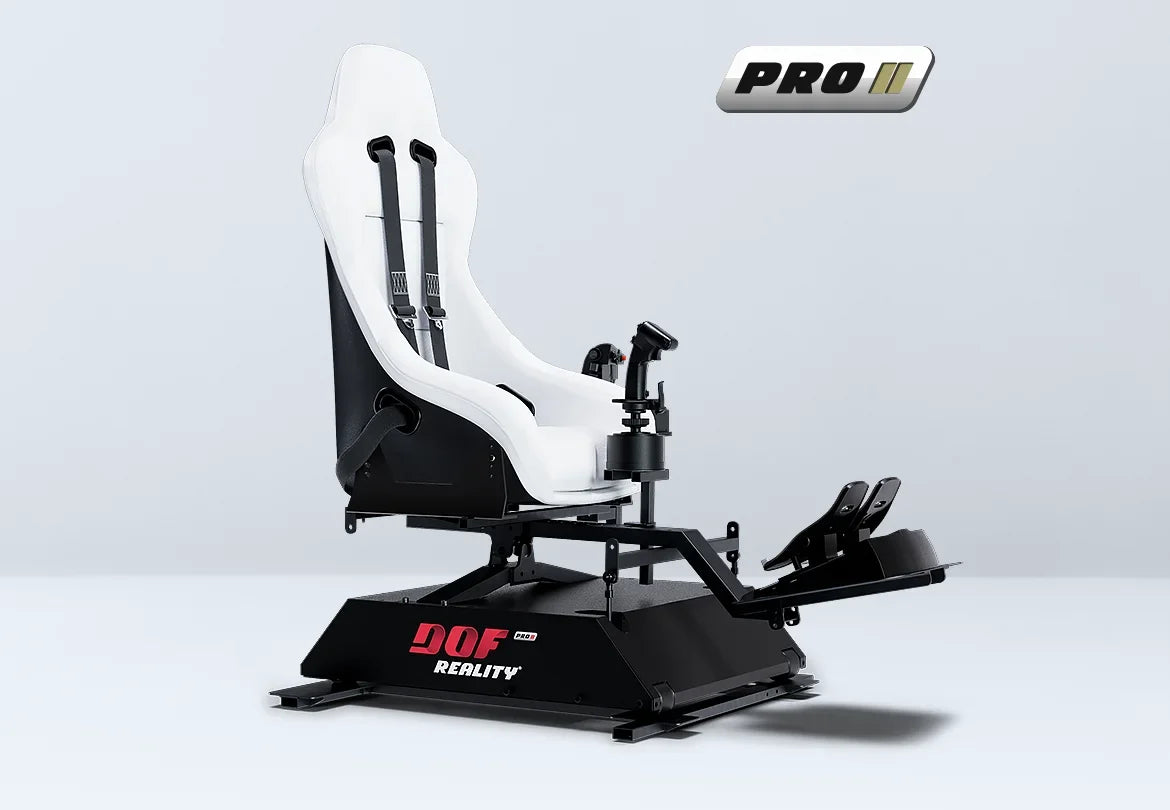

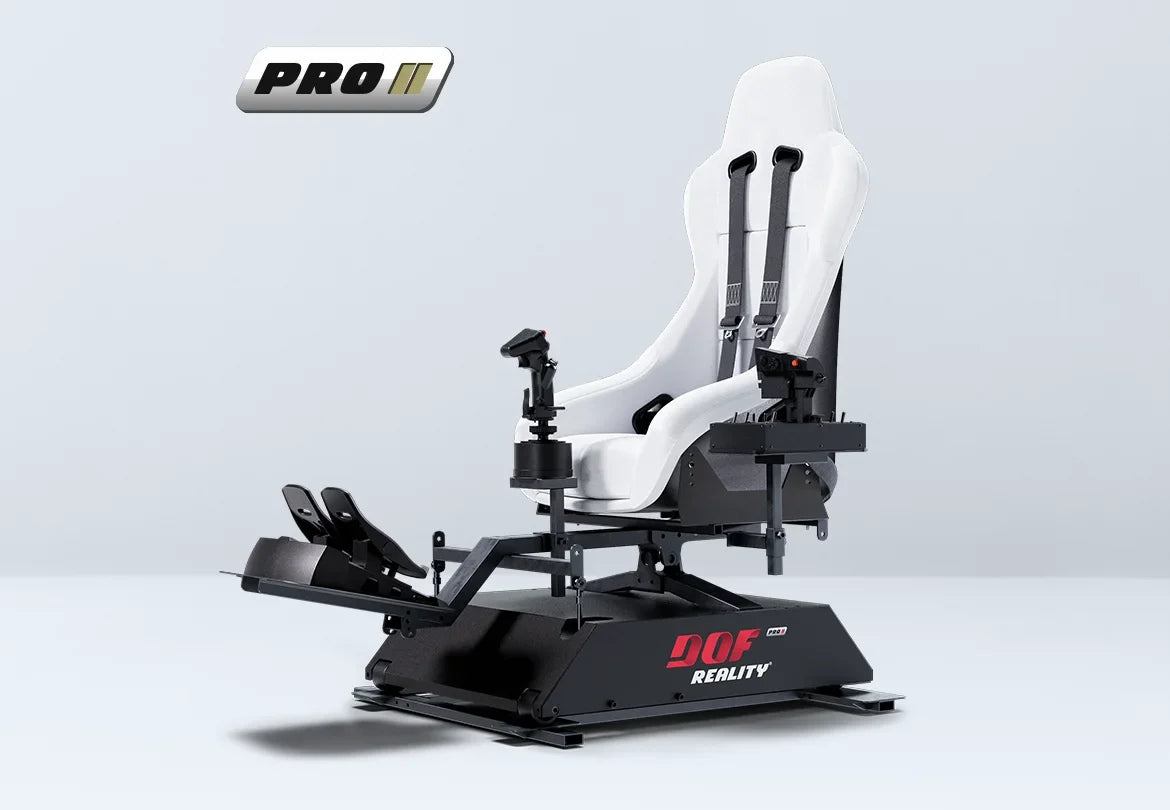

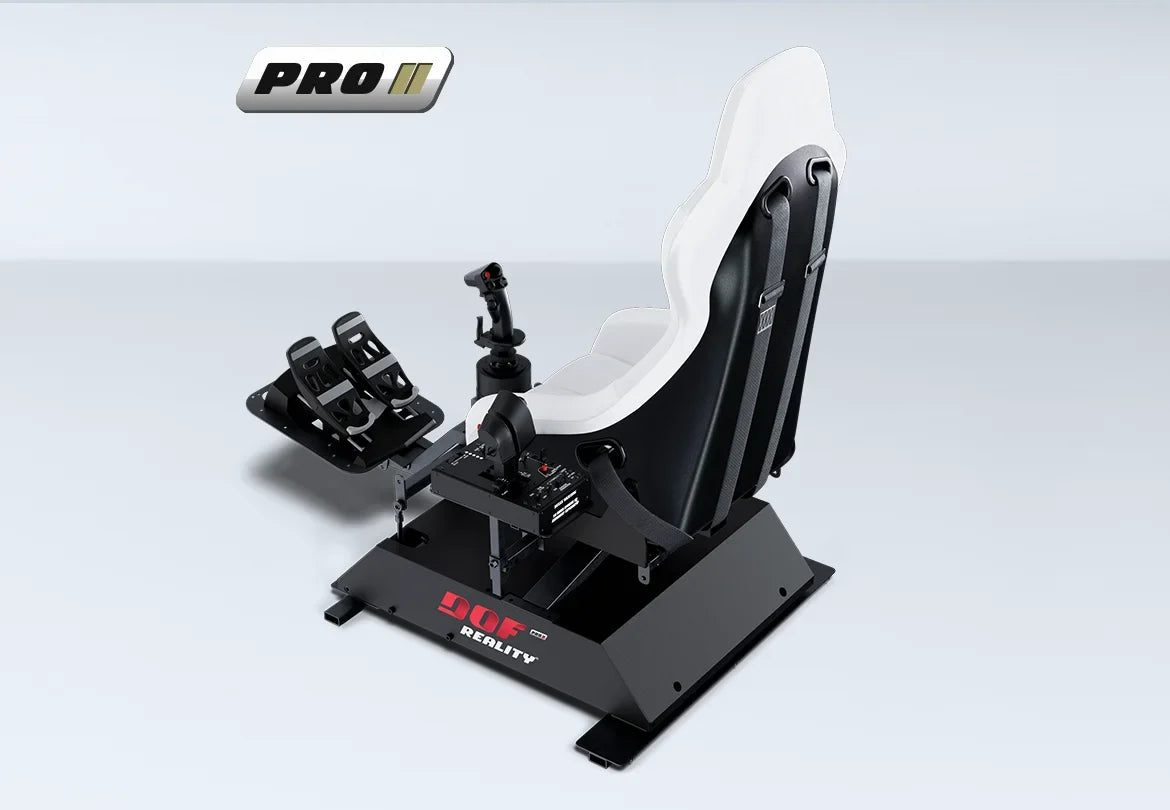

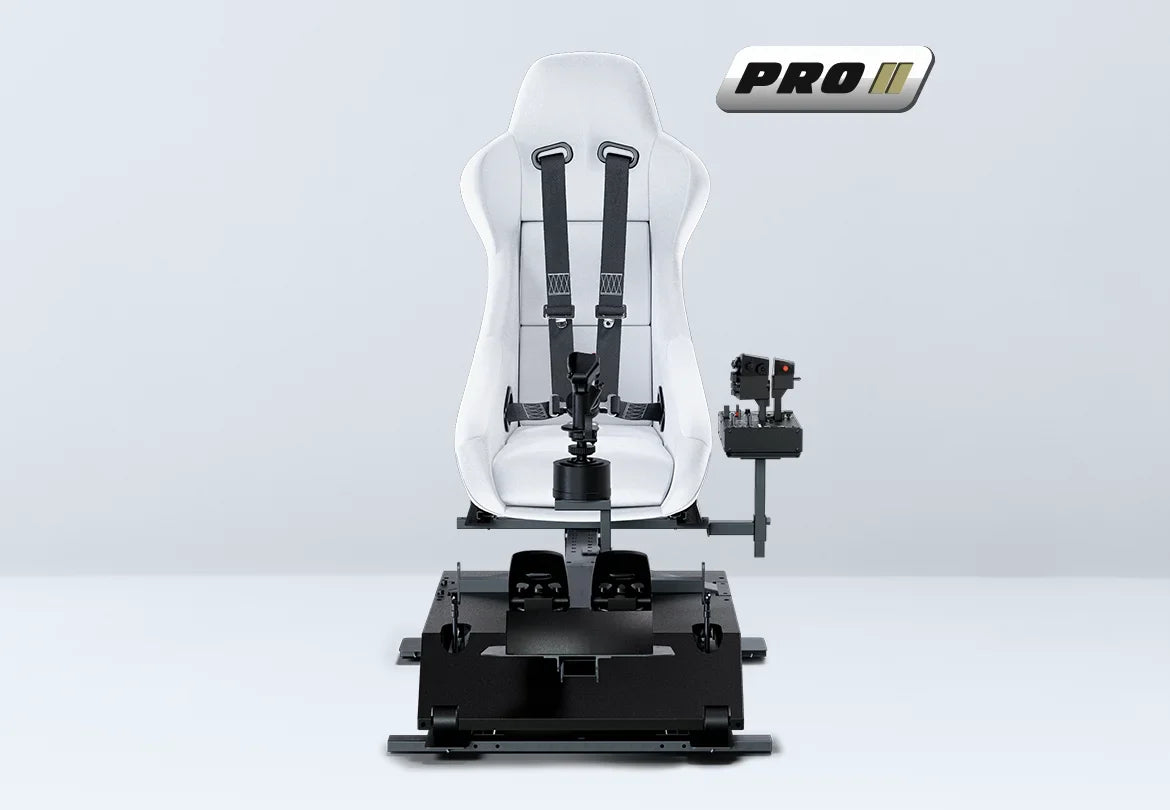

DOF Reality® P3 Motion Helicopter Simulator – 3-Axis PRO Ready-to-Play Platform

🛠️ Product Overview

Take your rotary-wing simulation to new heights with the DOF Reality® P3 Motion Heli Cockpit – 3-Axis PRO, the professional-grade motion platform engineered for exceptional precision and realism. Designed specifically for helicopter flight, this 3-axis system offers true roll, pitch, and yaw movement, accurately replicating the sensations of hovering, climbing, banking, and coordinated turns.

Built with gearbox-enhanced motors, the P3 delivers incredibly smooth, controlled motion ideal for the low-speed dynamics of helicopter flight. Every subtle shift and vibration is recreated, providing a lifelike experience for both training and entertainment applications. From hover transitions to autorotation, this system is crafted to make every motion feel authentic.

Since 2014, DOF Reality has led the industry in creating accessible, professional-grade motion simulators for enthusiasts and commercial operators alike. The P3 combines robust engineering, immersive motion fidelity, and plug-and-play functionality for a truly next-level heli simulation experience.

⚙️ Key Features

True 3-Axis Motion (Pitch + Roll + Yaw): Simulates lifelike helicopter motion, including climb, descent, and rotation.

Full Platform Motion: Moves the entire cockpit — seat, pedals, controls, and display — for synchronized realism.

Precision Gearbox Motors: Delivers ultra-smooth, low-speed movement ideal for hover and fine maneuvering.

Realistic G-Force Simulation: Recreates the physical feedback of flight through natural muscle pressure points.

SimRacingStudio Software: Provides real-time feedback from telemetry data, reproducing turbulence, vibration, and environmental conditions.

Multi-Application Design: Perfect for helicopter, fixed-wing flight, or racing simulation without any limitations.

Industrial-Grade Construction: Built with commercial metal profiles for maximum rigidity and durability.

Upgradeable System: Easily expand to a 6-axis (P6) configuration for full professional motion fidelity.

Plug-and-Play Setup: Includes all cables, tools, and software for straightforward assembly and immediate use.

📏 Specifications

Degrees of Freedom: 3 DOF (Pitch + Roll + Yaw)

Full Platform Motion: Yes

Range of Motion: 20°

Speed: 75 cm/s (105°/s)

Torque: 28 N·m

Acceleration: 0.75G (T) / 0.5G (L)

Power Consumption: 750 W (peak)

Material: Commercial-grade metal profiles

Supported Pilot Weight: Up to 440 lbs / 200 kg

Floor Footprint: 3 × 5 ft, 2 ft height (100 × 150 cm, 60 cm height)

Box Weight & Size:

Box 1: 78 lb (37 × 15 × 11 in) / 35 kg (94 × 38 × 28 cm)

Box 2: 97 lb (32 × 24 × 10 in) / 44 kg (80 × 60 × 25 cm)

Input Power: 100–240V Control Unit with USB connection

Warranty: 1-Year Full Warranty

💡 Why Choose the DOF Reality P3 Heli Cockpit?

Professional Flight Dynamics: Designed specifically for helicopter realism — including hover, yaw, and bank motion.

Enhanced Gearbox Technology: Ensures refined and fluid low-speed response, critical for rotary flight.

Full-Cockpit Movement: Experience fully integrated motion across all controls and displays.

Dual Use Flexibility: Suitable for both helicopter and airplane flight, as well as racing simulations.

Commercial-Grade Quality: Built for reliability in professional training and simulation centers.

Expandable & Future-Proof: Compatible with the P6 upgrade for full 6DOF motion.

Proven Innovation: Trusted globally by simulation professionals and aviation enthusiasts since 2014.

24/7 Global Support: Backed by a full 1-year warranty and around-the-clock technical assistance.

📦 What’s Included

Rigid metal rig (supports normal & F1 seating positions)

Mounts for seat or sliding rails

Integrated gearbox power drive motors

100–240V control unit with USB connection

SimRacingStudio software license

Quick assembly tools

1-Year full warranty
