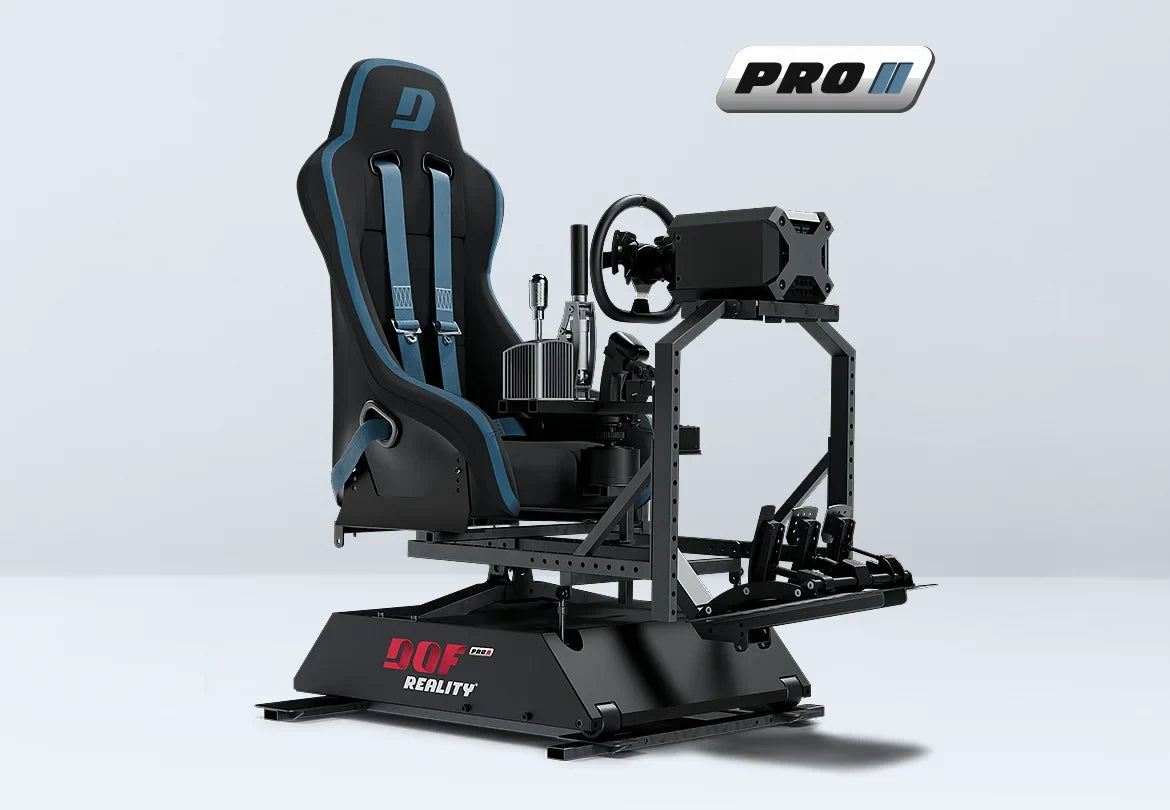

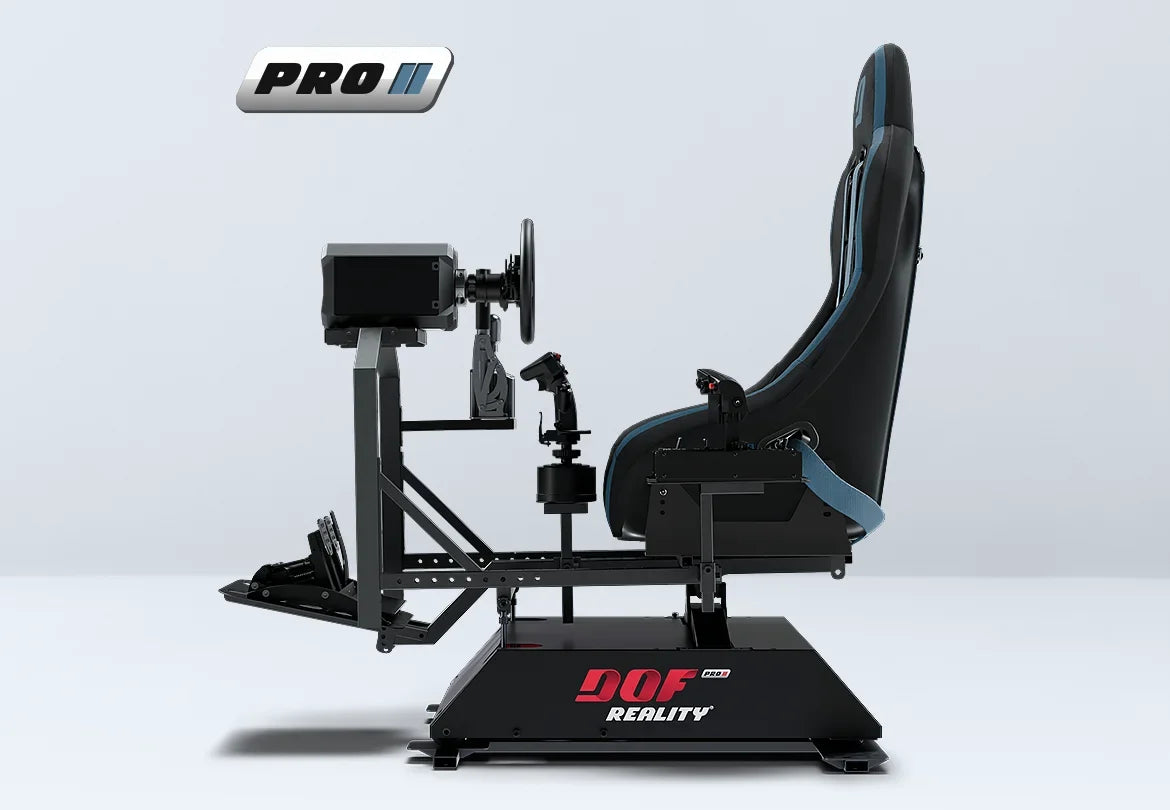

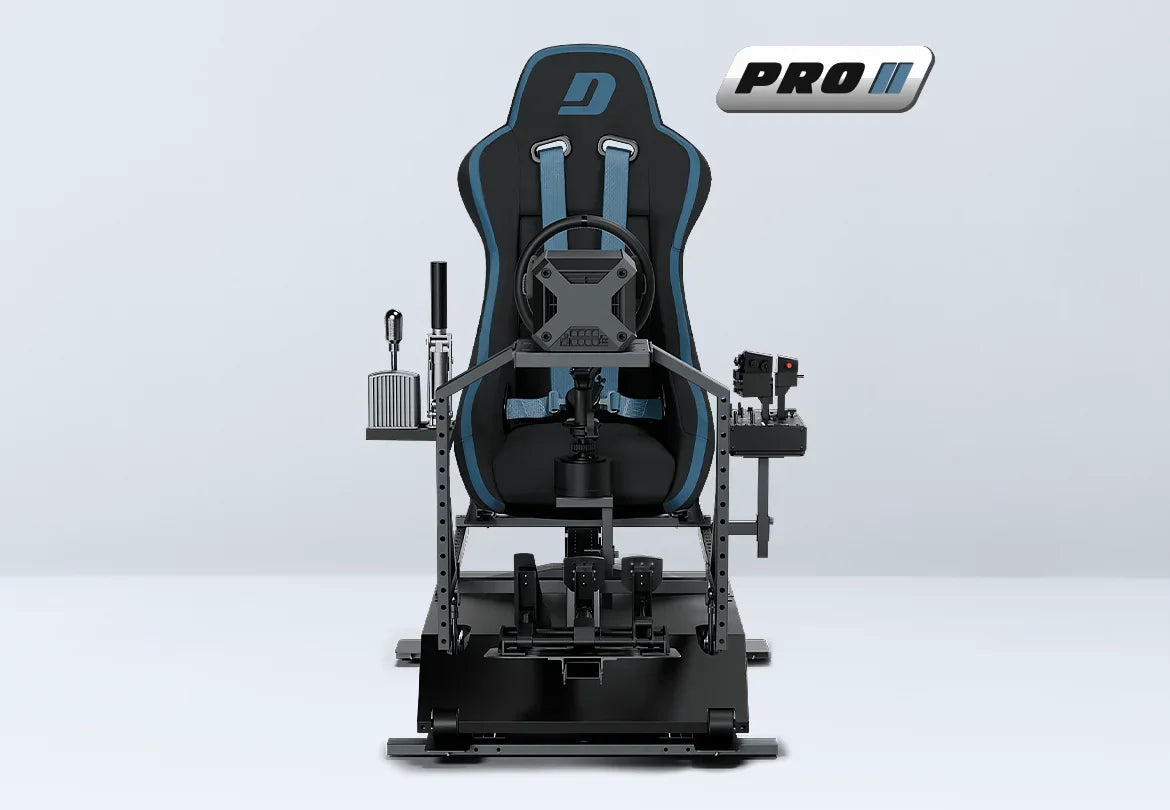

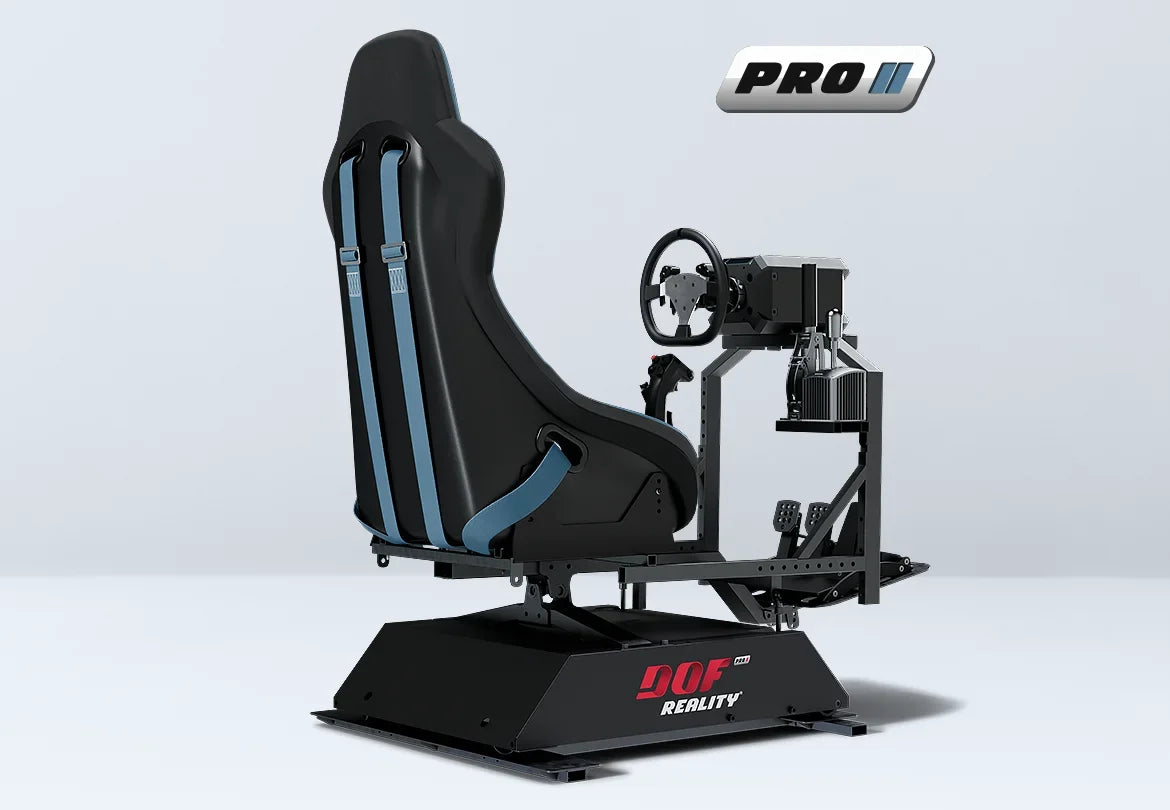

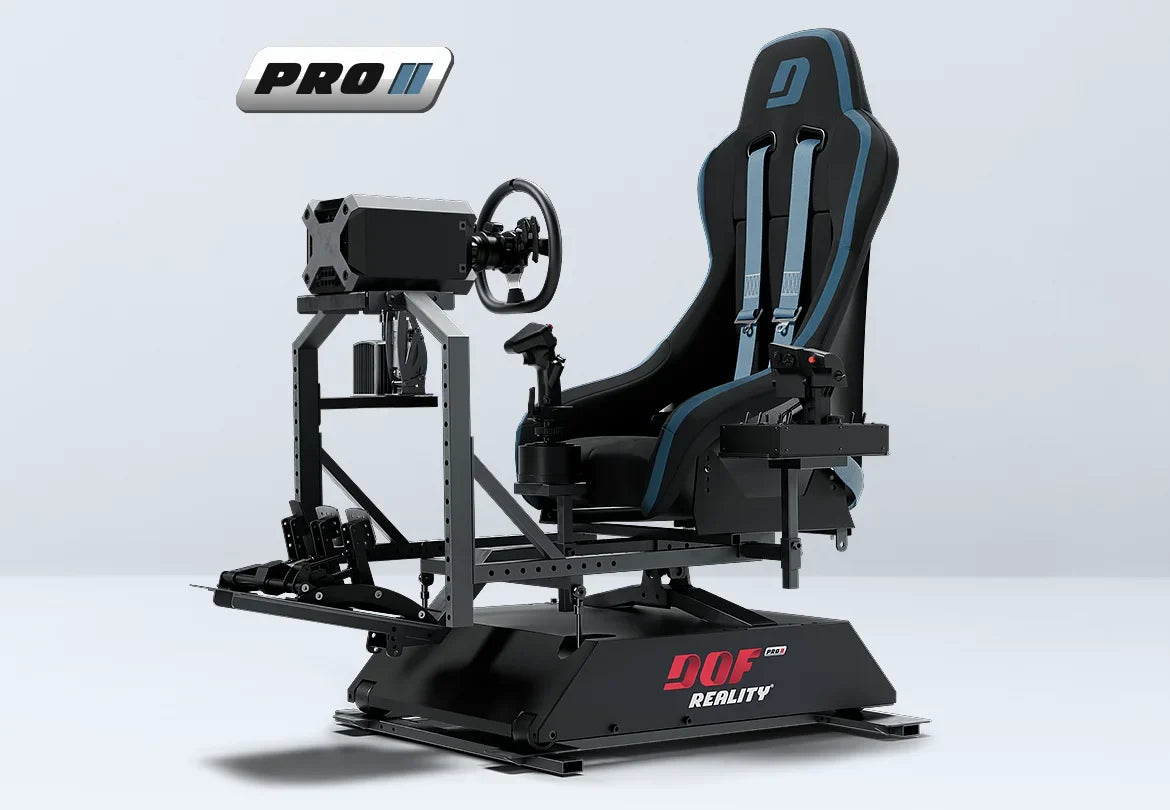

DOF Reality® P3 Universal Motion Simulator – 3-Axis PRO Ready-to-Play Platform

🛠️ Product Overview

Experience the ultimate in multi-simulation realism with the DOF Reality® P3 Universal Motion Platform – 3-Axis PRO, designed for professionals, enthusiasts, and businesses seeking a versatile, high-performance motion solution. Offering three degrees of freedom (pitch, roll, and yaw), the P3 delivers true-to-life motion for racing, flight, and helicopter simulation — all from a single, robust platform.

With its precision gearbox motors, the P3 ensures incredibly smooth, controlled motion ideal for both fast-paced racing dynamics and the subtle movements of flight simulation. Whether you’re cornering on the racetrack or maneuvering through the skies, this platform offers seamless, synchronized motion that replicates real-world physics and g-forces with unmatched accuracy.

Since 2014, DOF Reality has been a global pioneer in creating affordable, professional-grade motion systems for entertainment, training, and commercial use. The P3 continues that tradition with superior build quality, realism, and flexibility — giving users the ability to future-proof their simulation experience with scalable upgrades and universal compatibility.

⚙️ Key Features

True 3-Axis Motion (Pitch + Roll + Yaw): Accurately replicates acceleration, traction loss, oversteer, understeer, and drift dynamics.

Universal Multi-Simulation Design: Perfect for racing, flight, and helicopter simulations with no performance compromises.

Full Platform Motion: Moves the entire cockpit — seat, pedals, controls, and display — for total synchronization and realism.

Gearbox-Driven Motors: Delivers refined, ultra-smooth motion response suitable for both fast and slow-motion environments.

Advanced Motion Software: Integrated SimRacingStudio system interprets telemetry data for precise motion feedback, including terrain texture, road or runway vibrations, and impact events.

Industrial-Grade Build: Constructed from heavy-duty metal profiles to ensure strength, rigidity, and long-term durability.

G-Force Simulation: Simulates body pressure feedback, giving a realistic sense of acceleration and directional forces.

Plug-and-Play Setup: Ships with all required cables, motion control hardware, and software preconfigured for quick assembly.

Upgradeable System: Expandable to 6-axis (P6) for even greater realism and motion depth.

📏 Specifications

Degrees of Freedom: 3 DOF (Pitch + Roll + Yaw/Rear Traction)

Full Platform Motion: Yes

Range of Motion: 20°

Speed: 75 cm/s (105°/s)

Torque: 28 N·m

Acceleration: 0.75G (T) / 0.5G (L)

Power Consumption: 750 W (peak)

Material: Commercial-grade metal profiles

Supported Pilot Weight: Up to 440 lbs / 200 kg

Floor Footprint: 3 × 5 ft, 2 ft height (100 × 150 cm, 60 cm height)

Box Weight & Size:

Box 1: 78 lb (37 × 15 × 11 in) / 35 kg (94 × 38 × 28 cm)

Box 2: 97 lb (32 × 24 × 10 in) / 44 kg (80 × 60 × 25 cm)

Input Power: 100–240V Control Unit with USB connection

Warranty: 1-Year Full Warranty

💡 Why Choose the DOF Reality P3 Universal Motion Platform?

Versatile by Design: Perfectly suited for racing, flight, or helicopter simulation environments.

Smooth Gearbox Motion: Enhanced low-speed precision and high-speed performance in one platform.

Full-Cockpit Synchronization: Seat, controls, and display all move together for immersive realism.

Professional Durability: Trusted by simulation centers, training facilities, and commercial users worldwide.

Upgradeable & Scalable: Future-proof design allows expansion to 6DOF without starting over.

Trusted Engineering: Developed by industry leaders with over a decade of experience in motion systems.

Comprehensive Support: Includes 1-year warranty and 24/7 expert assistance for setup, tuning, and optimization.

📦 What’s Included

Rigid metal rig (supports normal & F1 seating positions)

Mounts for seat or sliding rails

Integrated gearbox-driven power motors

100–240V control unit with USB connection

SimRacingStudio software license

Quick assembly tools

1-Year full warranty
