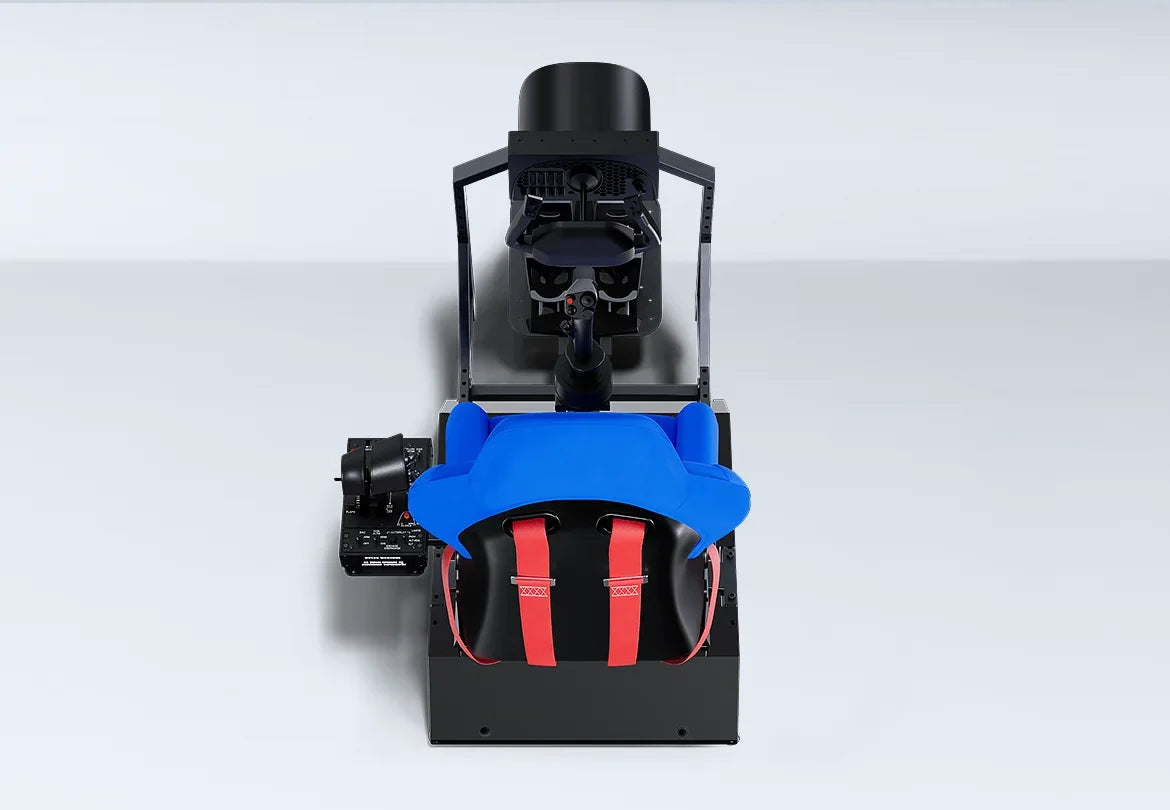

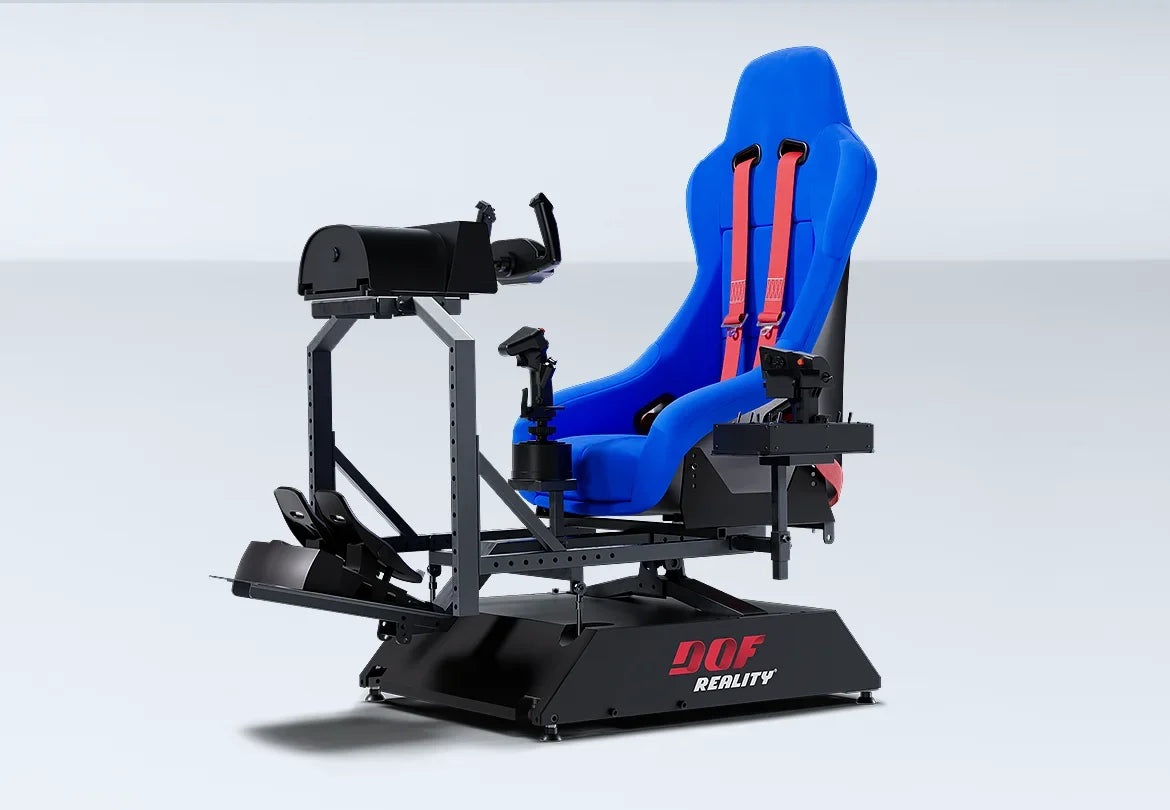

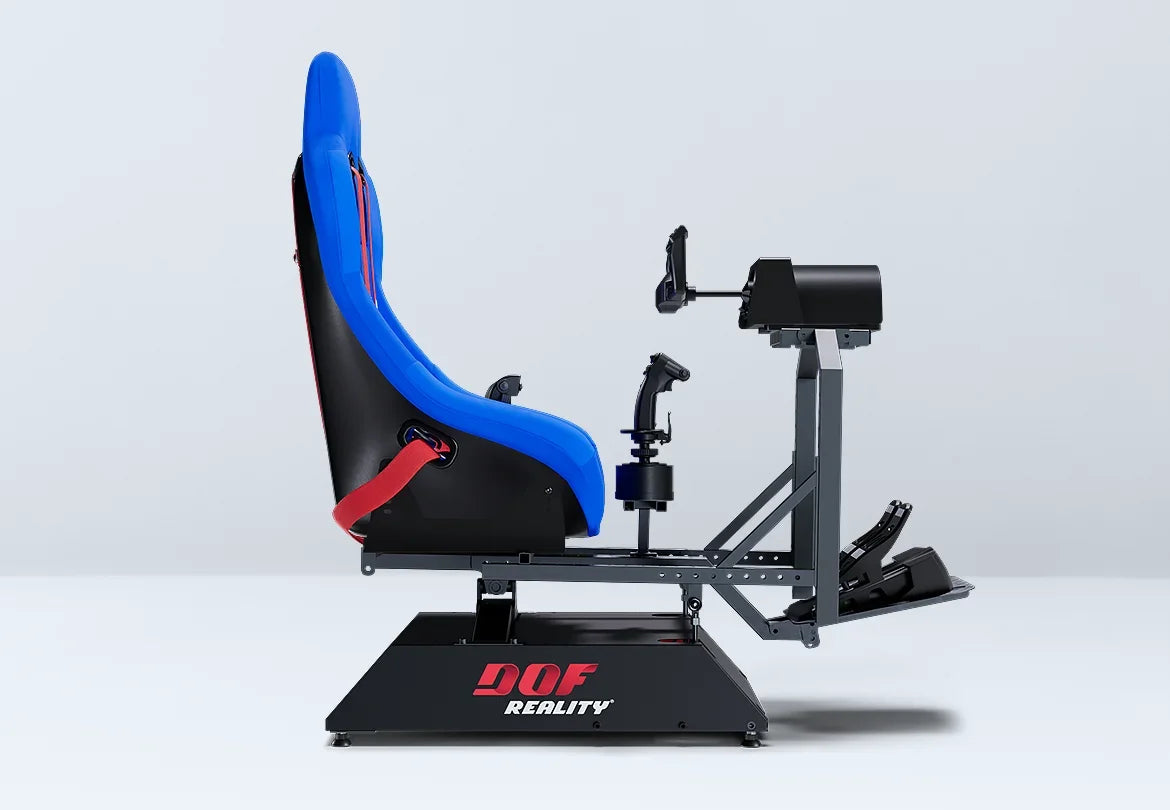

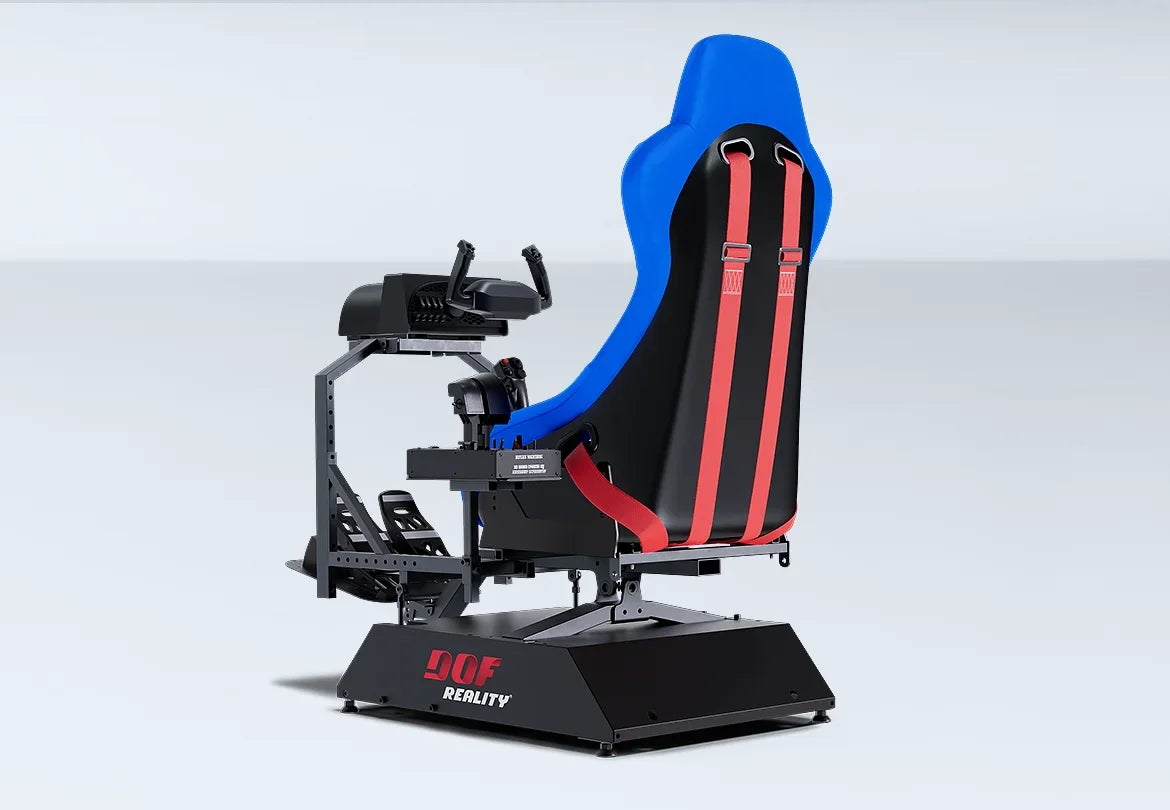

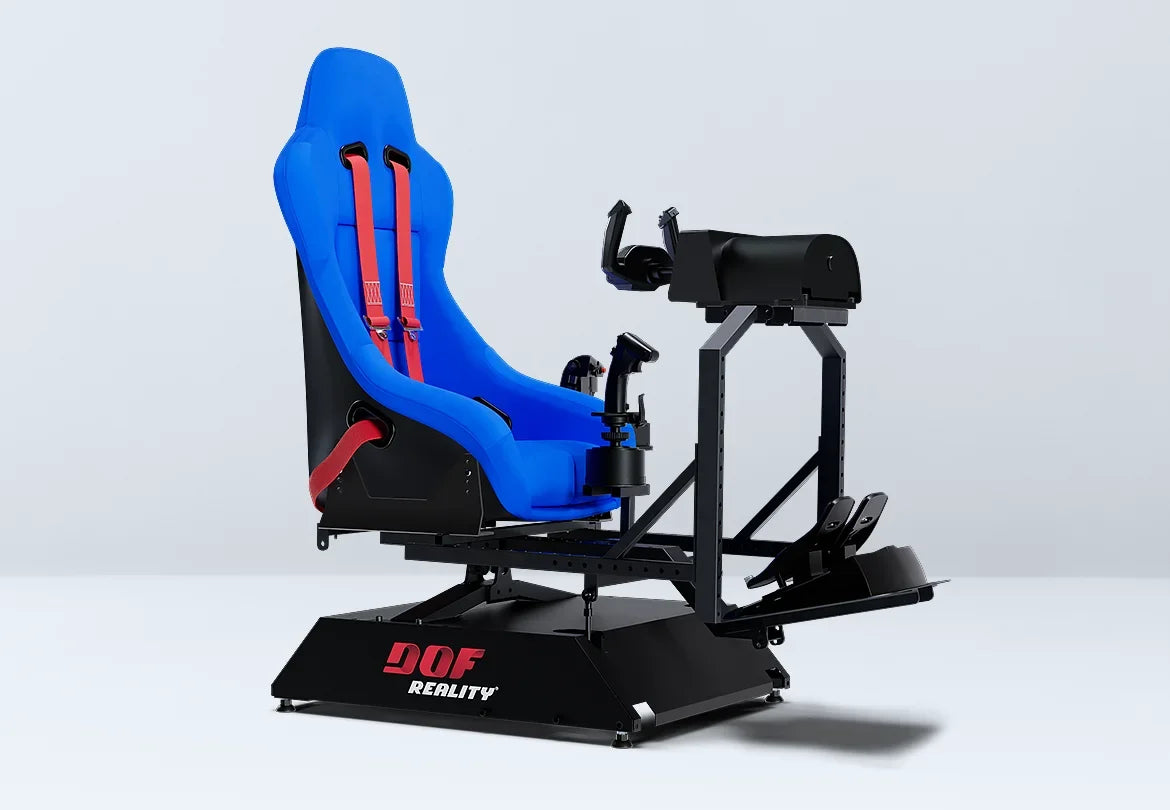

DOF Reality® H2 Motion Flight Simulator – 2-Axis HERO Ready-to-Play Platform

The DOF Reality® H2 Motion Flight Simulator – 2-Axis HERO (Ready-to-Play Platform) is a professional-grade full-motion platform engineered for immersive flight simulation. Designed for pilots, flight enthusiasts, and simulation professionals, it reproduces pitch and roll motion to reflect aircraft dynamics during climbs, descents, and turns. The platform moves the entire cockpit—including the seat, yoke, pedals, joystick, and monitor—for a highly immersive experience. Featuring upgraded dual-gearbox motors, plug-and-play operation, commercial-grade construction, and SimRacingStudio software integration, it delivers smooth, precise, and responsive motion for a wide range of simulation applications.

Specifications

• Degrees of Freedom: 2 DOF (Pitch + Roll)
• Full Platform Motion: Yes
• Range of Motion: 20°
• Speed: 50 cm/s (86°/s)
• Torque: 25 N·m
• Acceleration: 0.7G (T) / 0.5G (L)
• Power Consumption: 500 W (peak)
• Material: Commercial-grade metal profiles
• Supported Pilot Weight: Up to 440 lbs / 200 kg
• Floor Footprint: 2 × 5 ft, 2 ft height (59 × 150 cm, 60 cm height)
• Shipping Box 1: 64 lb (37 × 15 × 11 in) / 29 kg (94 × 38 × 28 cm)
• Shipping Box 2: 64 lb (32 × 24 × 10 in) / 29 kg (80 × 60 × 25 cm)
• Input Power: 100–240V Control Unit with USB

Features

• True Full-Motion System: Moves the entire rig including the seat, controls, and monitors together for an immersive simulation experience.
• Optimized for Flight Simulation: Upgraded dual-gearbox motors provide smooth and precise motion for fixed-wing and helicopter simulations.
• 2-Axis Motion: Simulates pitch and roll to recreate climbs, descents, and turning forces.
• Rigid Metal Frame: Designed for both standard and F1 seating positions with exceptional stability.
• Plug-and-Play Design: Includes integrated motors, control unit, cables, and software for straightforward setup.
• Detailed Motion Feedback: Reproduces turbulence, runway bumps, and aircraft vibrations for enhanced realism.
• SimRacingStudio Software: Includes customizable motion profiles for flight, helicopter, space, and racing simulations.
• Universal Compatibility: Supports major VR systems, seats, yokes, pedals, joysticks, throttles, and other flight controls.
• Upgradeable Platform: Expandable to 3 DOF (H3) or 6 DOF (H6) configurations.
• Commercial-Grade Construction: Built from durable metal profiles for long-lasting performance.

Package Contents

• Motion Rig: Rigid metal rig supporting normal and F1 seating positions.
• Seat Mounts: Mounts for seat or sliding rails.
• Drive System: Integrated power drive motors with enhanced gearboxes.
• Control Unit: 100–240V control unit with USB connection.
• Software: SimRacingStudio license.
• Assembly Tools: Quick assembly tools.

Warranty

• Coverage: 1-Year Full Warranty
