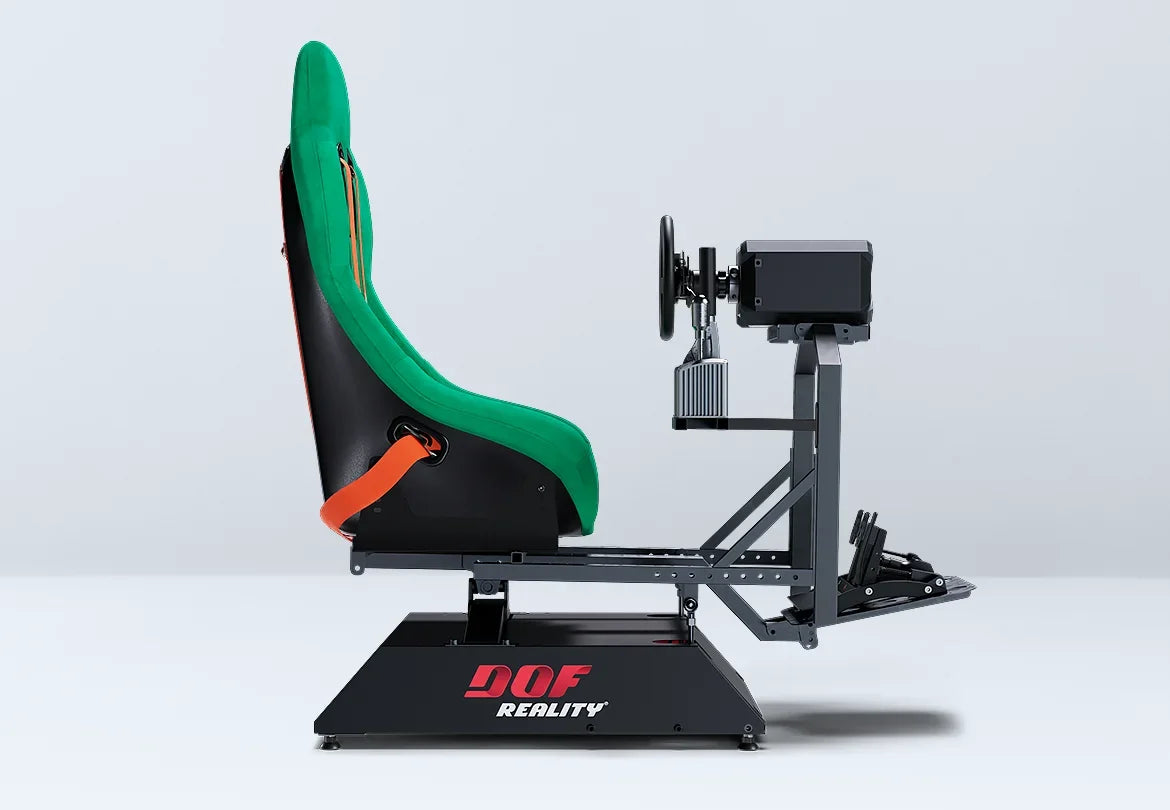

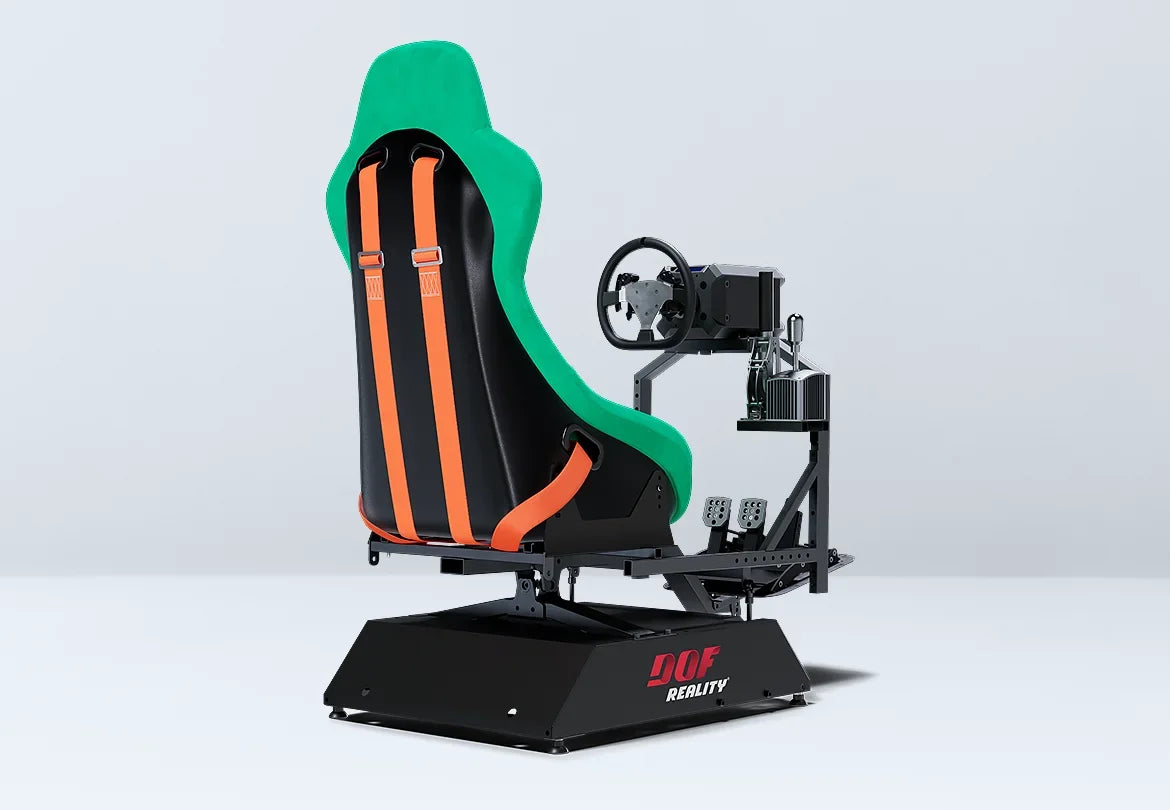

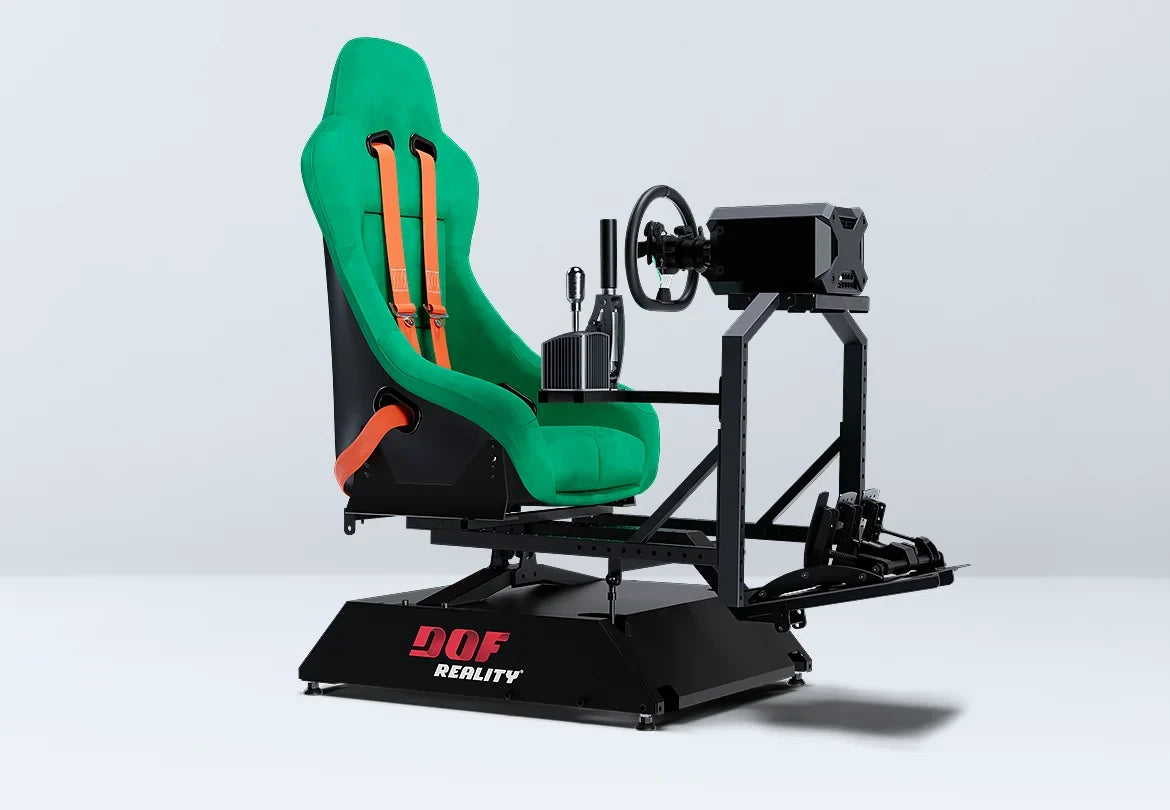

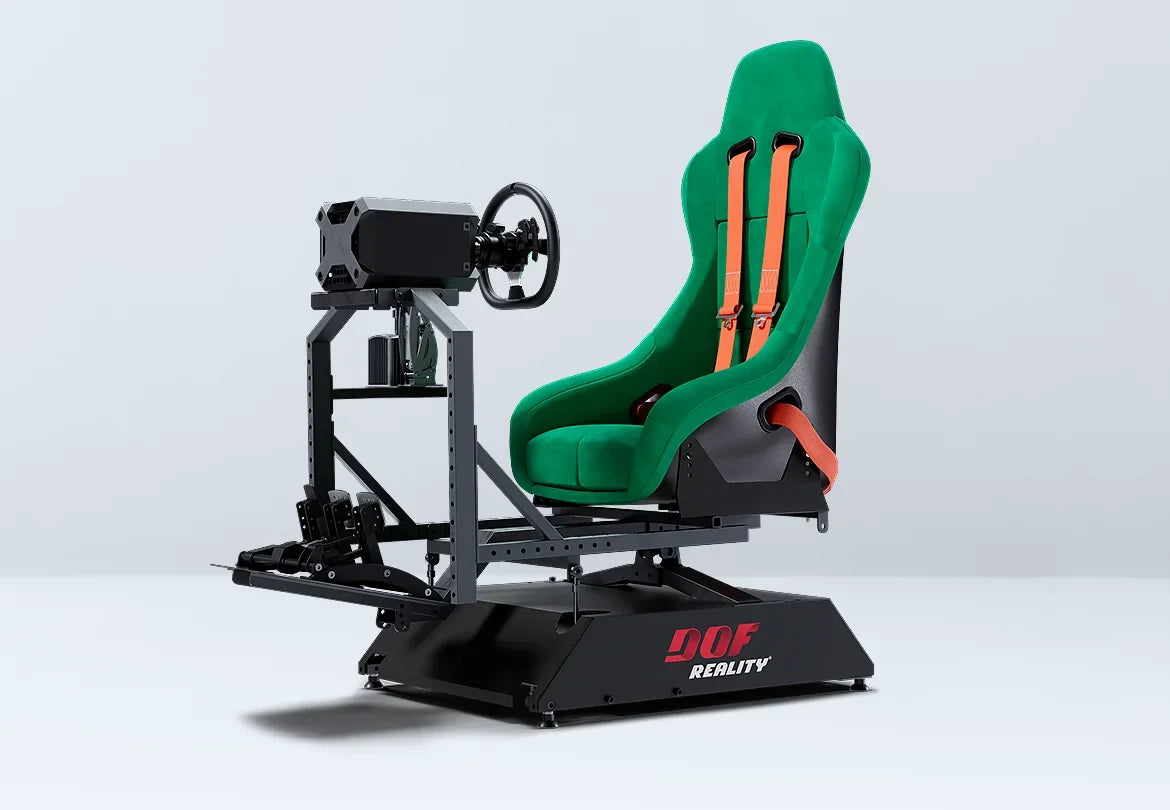

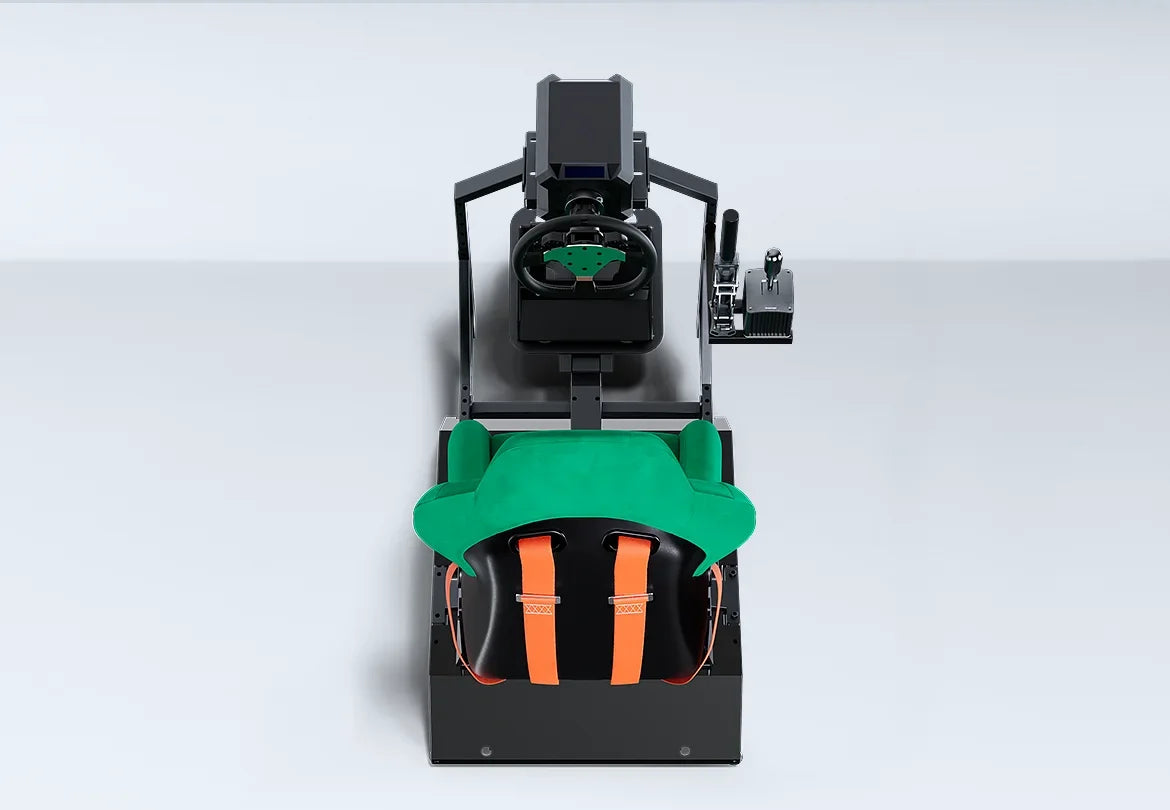

DOF Reality® H2 Motion Racing Simulator – 2-Axis HERO Ready-to-Play Platform

The DOF Reality® H2 Motion Racing Rig – 2-Axis HERO (Ready-to-Play) is a professional-grade full-motion platform designed for immersive racing and flight simulation. Engineered to move the entire cockpit—including the seat, steering wheel or yoke, pedals, and attached monitors—it delivers realistic motion feedback during acceleration, braking, and cornering. Built with a commercial-grade metal frame, integrated quiet-drive motors, and powered by SimRacingStudio motion software, this plug-and-play system offers responsive performance, broad hardware compatibility, and an upgradeable architecture for future expansion.

Specifications

• Brand / Manufacturer: DOF Reality®
• Model Series: H2 Motion Rig – 2-Axis HERO
• Degrees of Freedom (DOF): 2 DOF (Pitch & Roll)
• Motion Range: 20° Total Tilt Range
• Maximum Motion Speed: 50 cm/s (86°/s)
• Torque Output: 25 N·m
• G-Force Acceleration: 0.7G (Transversal) / 0.5G (Longitudinal)
• Maximum Supported User Weight: 330 lbs (150 kg)
• Power Requirements: 100–240V AC, 500W Peak Power Consumption
• Rig Footprint: 59" L × 23.6" W × 23.6" H (150 cm × 60 cm × 60 cm)
• Shipping Package Weights: Box 1: 64 lbs (29 kg) | Box 2: 64 lbs (29 kg)

Features

• Full-Motion System: Moves the entire rig structure, including the seat, wheel, pedals, and monitors, while maintaining consistent body-to-control positioning.
• 2-Axis Motion Dynamics: Simulates pitch for acceleration and braking, and roll for cornering.
• High-Speed Drive System: Delivers responsive motion with speeds up to 50 cm/s (86°/s), 25 N·m of torque, and up to 0.7G acceleration.
• SimRacingStudio Software: Includes customizable motion profiles for racing, flight, and space simulation titles.
• Universal Compatibility: Supports major racing wheels, direct-drive bases, rudder pedals, flight yokes, HOTAS setups, and VR headsets.
• Upgradeable Design: Expandable to 3-DOF or 6-DOF motion configurations.
• Commercial-Grade Construction: Built with a durable metal frame and integrated quiet-drive motors for reliable performance.

Package Contents

• Frame Unit: 1 × Heavy-Duty Metal Frame Unit (Configurable for Standard & F1 Seating)
• Drive System: 1 × Integrated Power Drive Motor Assembly & Linkages
• Control Unit: 1 × 100–240V Control Unit with USB PC Interface Cable
• Seat Mount: 1 × Universal Seat Mount Bracket & Sliding Rail System
• Software: 1 × SimRacingStudio (SRS) Motion Software License
• Hardware Kit: 1 × Quick-Assembly Hardware & Tool Kit
• Documentation: 1 × User Installation & Setup Manual

Installation Guidelines

• Floor Clearance: Maintain at least 3 feet (1 meter) of unobstructed space around the platform to allow full 20° pitch and roll movement.
• Cable Management: Route power, USB, and display cables through the provided cable channels with enough slack for safe movement.
• Power Source: Connect the control unit to a grounded, surge-protected wall outlet capable of supporting up to 500W peak power.

Warranty

• Coverage: 1-Year Full Manufacturer Warranty
