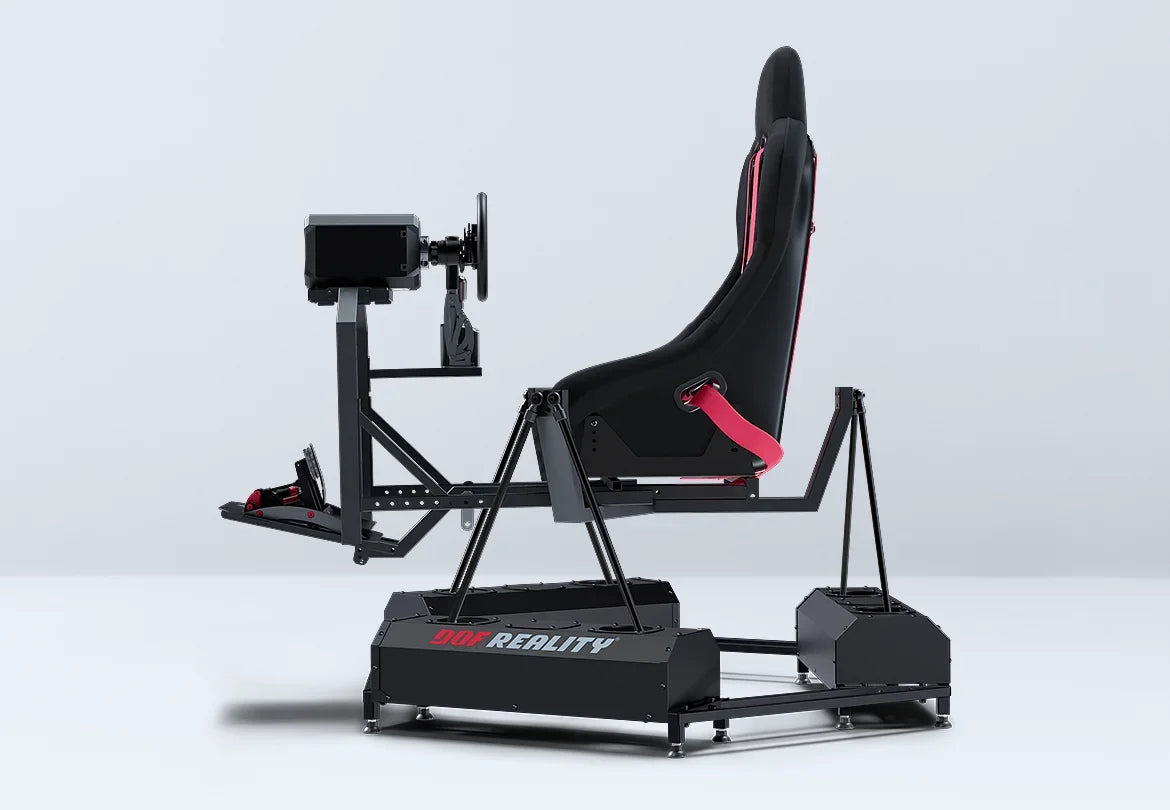

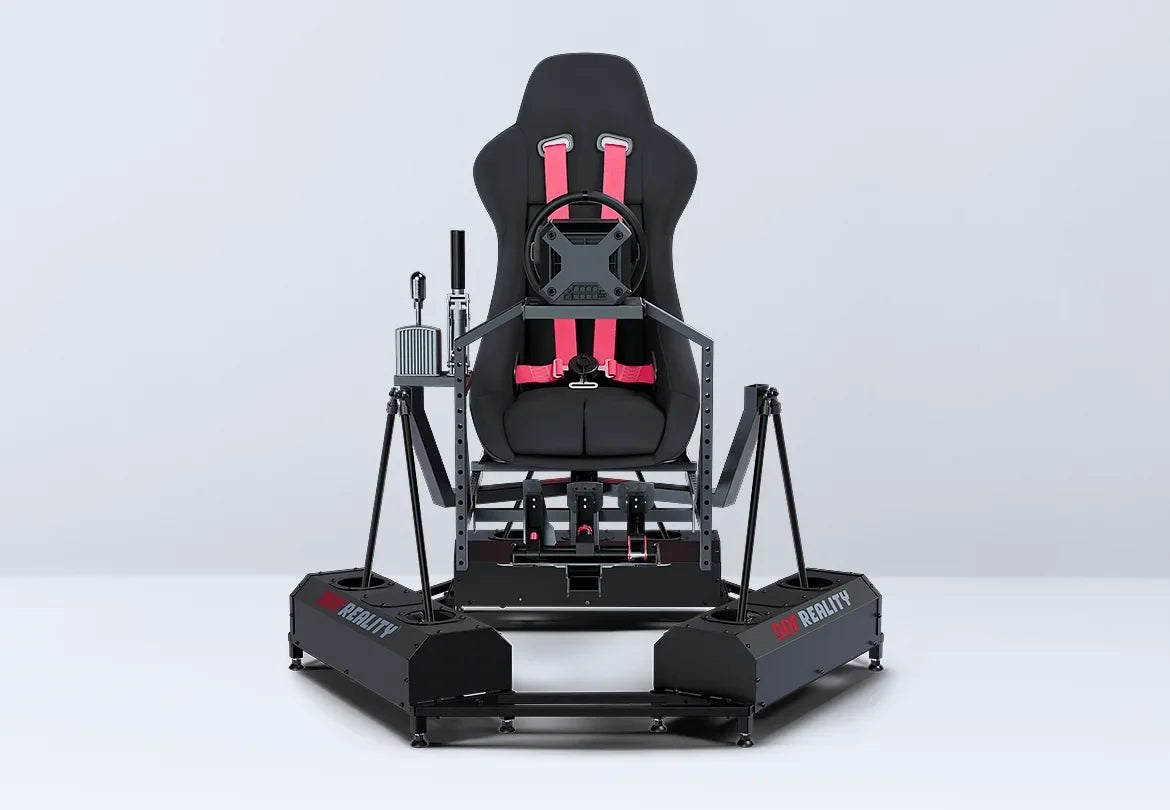

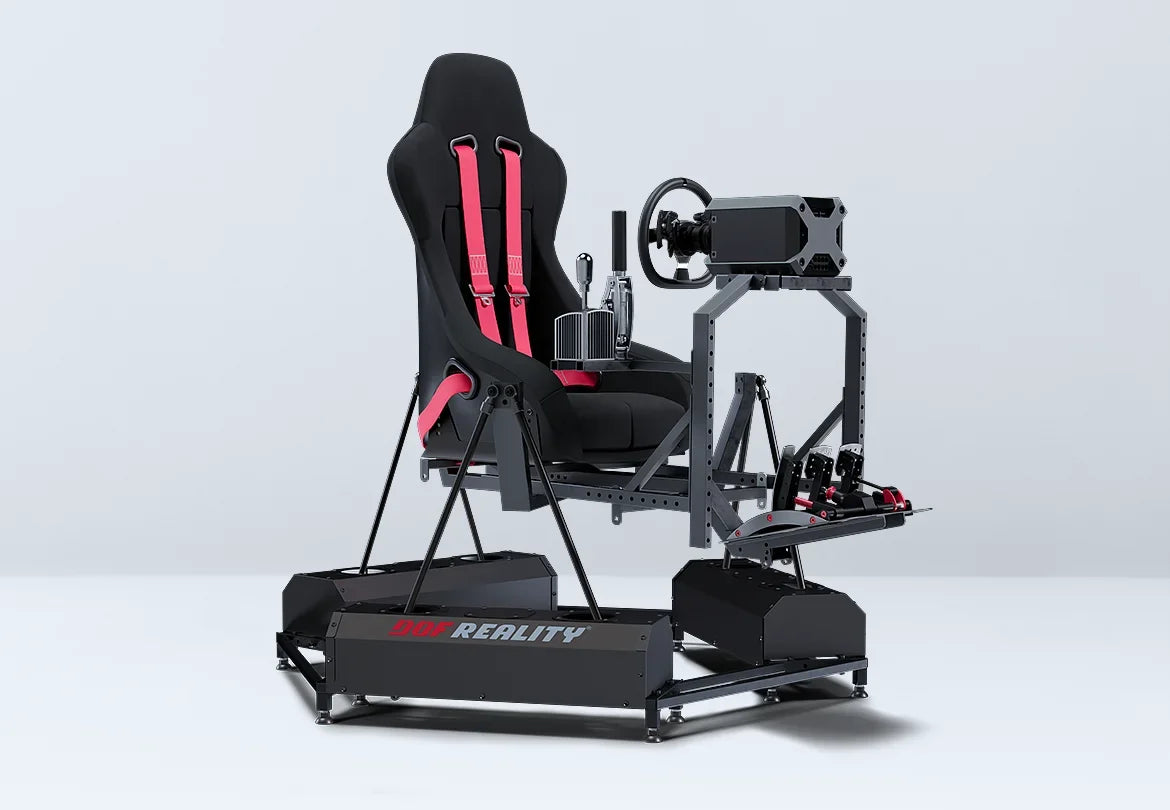

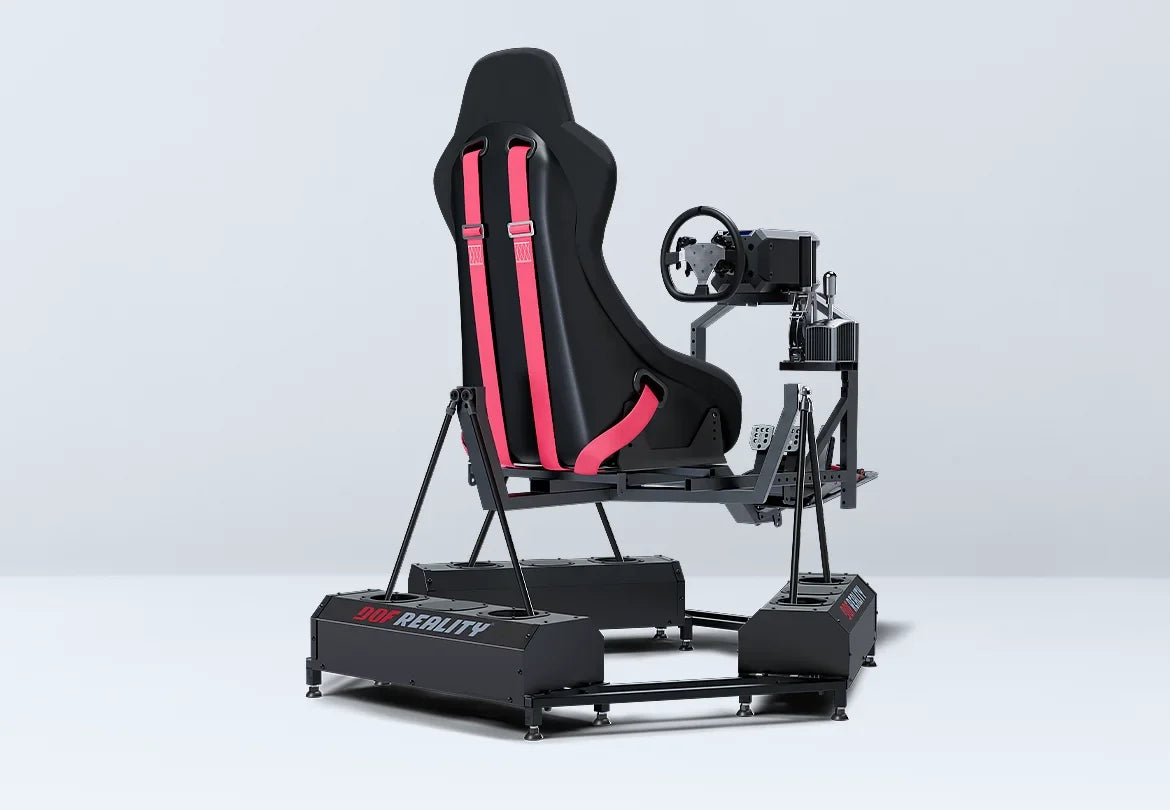

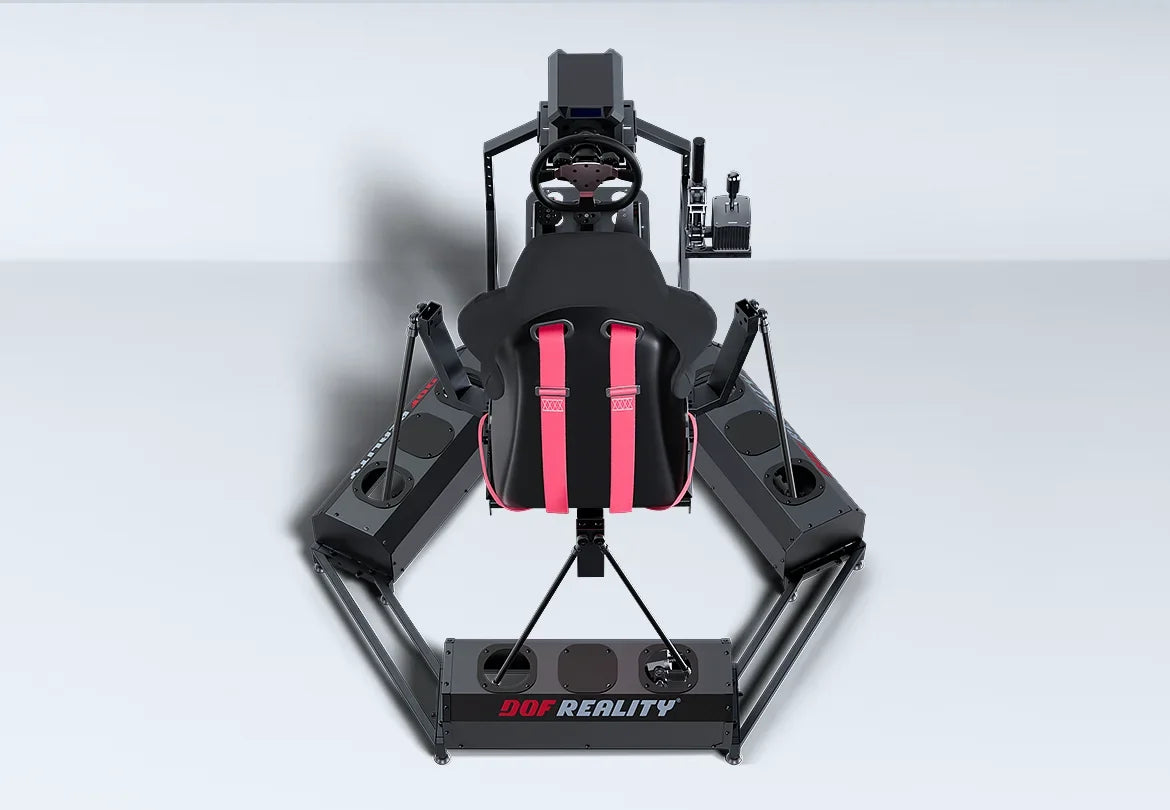

DOF Reality® H6 Motion Racing Simulator – 6-Axis HERO Ready-to-Play Platform

The DOF Reality® H6 Motion Racing Rig – 6-Axis HERO (Ready-to-Play Platform) is a flagship full-motion platform engineered for professional-grade racing, flight, and simulation enthusiasts. Featuring six degrees of freedom—pitch, roll, yaw, surge, sway, and heave—the H6 delivers highly detailed motion feedback by moving the entire cockpit, including the seat, controls, and monitor. Constructed from commercial-grade metal profiles with rigid metal motor covers, it combines durability, advanced engineering, and plug-and-play convenience with SimRacingStudio software integration for an immersive simulation experience.

Specifications

• Degrees of Freedom: 6 DOF (Pitch, Roll, Yaw, Surge, Sway, Heave)
• Full Platform Motion: Yes
• Range of Motion: 17°
• Speed: 50 cm/s (86°/s)
• Torque: 28 N·m
• Acceleration: 0.5G (all directions)
• Power Consumption: 1500 W (peak)
• Material: Commercial-grade metal profiles
• Supported Pilot Weight: Up to 330 lbs / 150 kg
• Floor Footprint: 4 × 5 ft, 2 ft height (120 × 150 cm, 60 cm height)
• Box 1: 133 lb (32 × 28 × 12 in) / 60 kg (80 × 70 × 30 cm)
• Box 2: 144 lb (32 × 28 × 12 in) / 65 kg (80 × 70 × 30 cm)
• Input Power: 100–240V Control Unit with USB

Features

• True 6-Axis Motion System: Simulates pitch, roll, yaw, surge, sway, and heave for comprehensive motion feedback.
• Full Platform Motion: Moves the entire rig, including the seat, wheel, pedals, joystick, and monitor.
• Advanced Motion Accuracy: Reproduces acceleration, braking, traction loss, drifts, oversteer, and understeer.
• Independent Roll Centers: Separate front and rear roll centers provide realistic body roll and yaw movement.
• High-Performance Drive System: Integrated motors deliver 28 N·m torque with rapid 86°/s response speed.
• SimRacingStudio Software: Includes customizable motion profiles synchronized with real-time simulation telemetry.
• Professional Construction: Heavy-duty metal frame with rigid motor covers for durability and reduced operating noise.
• Universal Compatibility: Compatible with major VR headsets, racing wheels, pedals, yokes, joysticks, and simulator controls.
• Plug-and-Play Design: Includes required cables, software, and power components for convenient setup.

Package Contents

• Motion Rig: Rigid metal rig supporting normal and F1 seating positions.
• Motor Covers: Rigid metal motor covers.
• Seat Mounts: Mounts for seat or sliding rails.
• Drive Motors: Integrated power drive motors.
• Control Unit: 100–240V control unit with USB connection.
• Software: SimRacingStudio software license.
• Assembly Tools: Quick assembly tools.

Warranty

• Coverage: 1-Year Full Warranty
